FTP Data Synchronization for Fun-II: the FileZilla server

Most people, including me, were less familiar with File Transfer Protocol (FTP) than the Hypertext Transfer Protocol (HTTP) which we use every time we visit websites. Working on FTP there was a great deal of frustrations. But I enjoyed that immensely and before I forget, let me tell you that all the work for the FTP server side was done on my Windows-7 laptop.

The FTP server I choose to work with is the FileZilla FTP server. It is free and you could download it here. As usual I double clicked on the downloaded file to install it and just accepted the defaults when installation asked me. After installing you open the FileZilla server by double clicking its shortcut on the desktop.

Now click “Connect”. Then do (1) to (4) as shown below:

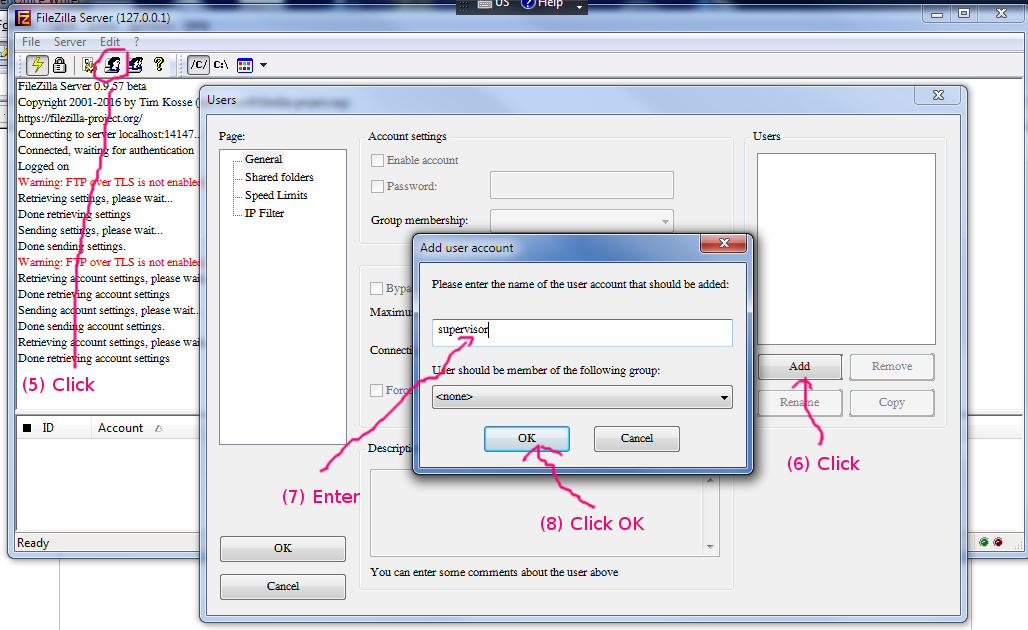

Then to create the user account (supervisor), follow steps (5) to (7) below.

Now you'll see the user “supervisor” account created and highlighted. Then you should enter a password for the supervisor account. I've written the password in the “Description” space for supervisor just for the sake of showing it.

Then you need to create a directory to be shared. Let's first create this folder on drive D, and at D:\CSEntry\data\. Then follow step (11) and (12) on the FileZilla server as shown below:

After clicking “Add” a popup menu will appear with which you browse for the directory D:\CSEntry\data\. You will see that an “H” has been added at the side of this directory to denote home directory. Now select this newly created home directory and add permissions to Write Files, and Create Directories.

By now, we managed to create the following credentials to connect to the FileZilla FTP server. The connection is specifically meant for a supervisor to connect to the FTP server using his/her Android mobile phone.

• Connection to the WiFi network ninjaFTP on which the FTP server resides (see the last post).
• The supervisor account to connect to the FTP server with password = superV@007.
• The shared folder D:\CSEntry\data\ which is designated as the home directory with additional permissions for supervisor account to write files and create directories.

Still, we need the address of the FTP server for the supervisor account to connect to. Here's how you could find that out: open the Network and Sharing Center on you desktop or laptop again. Then complete step (13) and (14).

To test if you can log in to the FTP server do the following.

First open WiFi on your Android phone. In our last post we've shown how to

create the access point “ninjaFTP” on the laptop/desktop. It should now appear on the WiFi screen and already connected. If not connected yet, connect to it.

For the next step you need to have CSEntry (available on Google Play store) installed on your Android mobile phone. Now, when you tap the CSEntry logo on your phone the Entry Applications page opens. Tap on the three dots at the upper right corner (1), and go on working with these steps:

Finally after entering the password, tap “Connect”. If the connection with the FTP server is successful, CSEntry should responded with “No files”. What? Have we gone wrong?

No!! It is OK because CSEntry was looking for a .pnc or .pff file and there was none. Recall that what we were doing was testing to see if FTP communication works. And we see that it does!

To try sending and receiving actual data over FTP we still need to do some work on the CSEntry side.

FTP Data Synchronization for Fun-I: setting up a WiFi access point

In the data collection and data management scenario mentioned in one of my previous post Myanmar-Sar in R III: Light, SQLite, after data collection, first the enumerators would have to transmit their data to their respective supervisors. Next the supervisors would transmit their data files to the Township data manager who would subsequently transmit the data to the Central database.

In the CSEntry environment which I have been playing with, there are a number of options for transmitting data. For collecting enumerators' data on the supervisor's tablet or Android phone, you could use Bluetooth or some other third party software such as Zapya, or directly with a USB cable. This is also true for data communication between a supervisor and the Township data manager. Presently for the data communication between the Townships and the Central database you could use internet connection of some sort or manually carry the data back and forth.

A neat way for data communication in the CSEntry environment is to use data synchronization scripts to transmit files between the “client” and the “server”. This method is described in a number of documents:

CSPro User's Guide, pp. 143-153,Version 6.3.2 available here.

CSPro Synchronization, available here.

Synchronization File (.PNC), available here.

Among the methods you can use with Synchronization File,

1. Using a Dropbox account would be useful primarily for sending data from Township Data Manager to the Central database; additionally data communication problems between the supervisor and enumerator or between Township Manager and supervisors in out of the way places such as frontier areas would be effectively eliminated so long as they could get internet access.
2. Using a FTP server hosted by a desktop or laptop at the Township Office for the purpose of collecting data from supervisors. Here supervisors would have to visit the office and work within the WiFi range. You do not need to have internet access and all you need to do is to set up a WiFi access point on the desktop or laptop. Once the access point has been created and activated you could connect your Android phone to the access point and use the services of the FTP server.
3. Using Bluetooth synchronization for data communication between the enumerator and supervisor.

In trying them out, I have had the greatest difficulty in understanding and working with a FTP server and I have to go through a good deal of false leads before getting it done. If you'll look through the Synchronization guides listed earlier, you won't find anything on how to get started with setting up and using a FTP server. That's surely the penalty you've to live with when you don't have good internet access or smart phones and land lines could have cost you 2M Kyats or more not too long ago! It would have been a piece of cake for people out there, I guess. For us dummies, we are back to square one. Such basics were sickbases for us. Anyway I managed to do it, finally.

To set up an access point on your Windows desktop or laptop, begin with the three steps shown below. There I had been too lazy and combined into a single screen shot for what should have been three separate ones.

Now a bit of clarification. To be able to do (3) you'll have to right click on “cmd.exe” at the top to open the popup menu and then you may have to supply an administrator password. After that the command line will be opened.

At the command prompt you'll have to enter this command in full: for XXX you enter your access point name, and for YYY you enter your key (password) for it.

netsh wlan set hostednetwork mode=allow “ssid=XXX” “key=YYY” keyUsage=persistent

Let's say you use the following:

netsh wlan set hostednetwork mode=allow “ssid=ninjaFTP” “key=123NINJAftp” keyUsage=persistent

After creating the access point you can start it at command prompt with

netsh wlan start hostednetwork

and stop it when you want to:

netsh wlan stop hostednetwork

After activating, we should test to see if the access point works. First let's look at the connections in the network. This is what you see before you've activated the hostednetwork.

After you've run netsh wlan start hostednetwork:

To connect to this access point, you have to turn on WiFi on your Android phone. Now when you see ninjaFTP and tap on it (1), enter password (2) and then tap connect, and voilà you are connected (3):

Now look again at the network connections on your desktop/laptop:

And you see that your access point works fine.

Myarmar-Sar in R IV: RStudio to the Rescue

Now I run a fragment of the same script I used for my last three posts on Myanmar-Sar in R on my workhorse laptop which doesn't have MyMyanmar Language System installed. Now I run the script on Rstudio and presto!:

And you see that Myanmar-Sar is displayed correctly on the console!

It was not my own brainwave that took me to the right place and sure I know you won't expect me to. It was Yin Zhu's post “Unicode Tips in Python 2 and R” of July 9, 2013 on R-bloggers which I've read some minutes earlier that shows me the key:

Use a Unicode terminal and a Unicode text editor when working with Python and R. For example, RStudio is, while Rgui.exe isn’t. PyDev plugin/PyScripter is, while the default IDLE isn’t.

Case close, at least for dinari.

Immediately after reading Yin Zhu, I installed RStudio. Before, I was just using R's own Rgui and it was fine. Anyway, apart from dinari's problem, another practical need prompted me to try RStudio. It was the need to use Myanmar-Sar (or other non-English characters) as part of the code.

Here let me demonstrate the difficulty and usefulness of the solution involved with a toy example. Let's say a robot from some place in the universe has been recording and sending home the information on living things it “sees” on earth (don't go away; I've translated the data into English for your convenience). Please don't be offended by this extra-terrestrial being's use of Myanmar language. His “dog” category for classifying living things would have meant “others”. I suspect he/she has a Bamar lineage probably from Weitzers and Zawgyis of the ancient past and his/her Myanmar language has gotten rusty.

Now I run this in RStudio:

Note that in the screenshot above we can see Myanmar-Sar correctly for a line in “x” using the cat( ) function. But can't see it in Myanmar-Sar when run in Rgui console as we see in the screenshot below.

But when we write the csv file, both give correct results.

Importantly, this exercise supports our view that not being able to see Myanmar-Sar on the standard R console doesn't diminish R's usefulness for reading, manipulating, and writing Myanmar-Sar in R. However ease of coding involving Myanmar-Sar could be much improved if we use RStudio.

Get a taste of it yourself by trying to write the fifth line of code from the above script shown below by using the standard Rgui console:

Summing up, what I've tried out so far barely scratched the surface of R. Yet I am confident that we could use the power of R in data analysis involving Myanmar-Sar or, I guess, other non-English language as well by using RStudio console together with appropriate R packages. Doing so we have seen that we could use standard Unicode fonts to get our job done without the need for some other fancy or risky software.

Myanmar-Sar in R III: Light, SQLite

There was this large scale data collection and data management scenario for an important nation-wide event. The kind of data to be collected is deceptively simple but the catch is that the sheer size of the operation makes it a formidable undertaking. When the results were in, the scores were found to be not that enviable. Judging from what meager information available on the official websites, those from interested local NGOs, international contractors and NGOs with stakes in this undertaking, my dumb guess is that the responsible parties and the public seemed to have been caught unawares. Well, enough of my obscure remarks. Let's get down to work.

The plan was to have the central database maintained by PostGresSQL with SQLite databases at Township level serving as data collection points and exchanging data with the central system through offline and online data transfers. It was specified that Myanmar-3 font, the standard font for Myanmar Government agencies, will be used for both user interface and database storage. In this context, the idea basically, I guess, is to encode the data transmitted in Myanmar-Sar as well as in other forms in UTF-8 system.

Well, that's quite some interesting topic for small guys to play with, as usual, for fun (and and may be of some use). One possible solution in this context, I guess, is to collect data in the field using a CSEntry application on Android phones and upload the text data files at township data collection point(s) to an SQLite database via R. Then the stored data could be uploaded to PostGresSQL database online or offline. Continuing my explorations with Myanmar-Sar in R, the modest objective of the exercise for this post will be to try to create a simple SQLite database via R and see how it handles Myanmar-Sar.

For this exercise, you need to have RSQLite package installed on your machine and we will still be using the State/Region Pcode data of MINU we have used for the last two posts as the source data. The R script is self-explanatory:

What is remarkable here is that when you upload data with Myanmar-Sar to SQLite database from R, and retrieve it back, and then write the result to a text file, you do not lose the Myanmar-Sar as we can see below:

However, if you were to write the data read into R as SR_MIMU dataframe and try to write it directly into text file:

                 write.csv(SR_MIMU, file = “SR_MIMU_direct.csv”, row.names = FALSE)

you'll get this instead.

To get a text file with correct Myanmar-Sar, you'll need to use writeLines() in the correct way in this situation. We have shown that in our earlier post.

Myanmar-Sar in R – II: Displaying on the Console

This post arises as an afterthought to my explorations relating to dinari's question which was the subject of my last post. The solution in that post was about reading in and writing out UTF-8 coded Myanmar-Sar with R. Before I stumbled upon dinari's question, I came to realize that reading in and writing out Myanmarsar correctly in R was not for the fainthearted, just by looking at a post like “R on Windows: character encoding hell”, for example. It was by sheer luck that I could find relatively fast the solution given in my last post. However, I had dismissed the task of displaying Myanmar-Sar on console as too hard. That would be desirable, but not that important so long as we could import Myanmar-Sar correctly into R, process it and export it correctly out to a text file. Just now I've seen my kind of idea expressed in an answer to “Cannot read unicode .csv into R” on Stack Overflow.

By the time that I've read that post by puslet88 I have already worked out how to correctly display Myanmar-Sar on R console. First let's revisit dinari. In the beginning we have to understand that we were able to see the Myanmar-Sar in the text file we had written out only because we have installed Myanmar3 font (or for that matter, any Unicode compliant font such as Tharlon, ThanLwin, or Padauk, … ) on our machine. In my own experience, I was able to use Myanmar3 font on CSPro software for developing data entry application on Android phones. So I looked around for a font that could be applied everywhere in Windows and found the MyMyanmar Language System.

In my last post, displaying Myanmar-Sar on the R console has reached as far as:

Then, after installing Padauk font we get the kind of half Myanmar-Sar half Unicode codepoint that danari had complained. We need to use the cat( ) function:

The Myanmar-Sar outputs looked as if some wrong font has been used! I tried tweaking the Windows registry like modifying MS Shell Dlg and MS Shell Dlg2 both to Padauk in …\FontSubstitutes. That didn't improve the R console display, but in filenames in Windows Explorer where small squares only were visible before, I could now read in Myanmarsar.

Looks like the names of first two files were written in Zawgyi. However, in this context I have to caution you to make a registry restore file before you try to modify the Windows registry.

Now that I've installed Myanmar Language System, I run the part of the script shown in my last screen shot above, and voilà!

So the solution for dinari's problem is to have a Myanmar-Sar font installed that could display system-wide and to correctly use the subscripts for list: [[1]][1], converting the results to character, and use the cat( ) function. According to him his problem was in Mac environment which I've no knowledge. But I guess the R syntax won't be that different from the Windows environment for R.

After I had installed MyMyanmar and successfully ran the above code I discovered this post (too late?) from CNET, http://download.cnet.com/MyMyanmar-Unicode-System/3000-2094_4-10578829.html:

The downside of MyMyanmar is that when I became worried about using the MyMyanmar Language System and uninstalled it, I was left with Windows popups that have barely readable texts!

Then no amount of my safe tweaking with Window's “Personalize” or the registry could bring that back to normal. I was about to reinstall Windows, but then I tried installing ThanLwin and Padauk fonts from SIL. Miraculously, the problem disappeared! I don't know which one of them delivered me, but it was fine.

Well, I won't blame the MyMyanmar people for that. We all need encouragement. We all are on the same boat and we need to go far. But they would do well warning us about this side effect and give us the remedy. Their uninstall should have handled this problem.

To play safe, I installed MyMyanmar on another laptop to run the last code fragment I've shown just for writing this post. For my work, and presently, I am just happy with the ability of R to import, process and export UTF-8 data (including Myanmar-Sar) independently of how they are displayed on the console.
